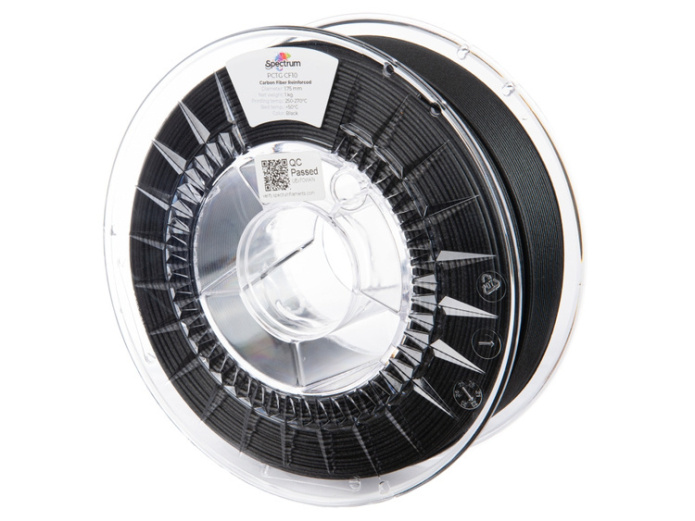

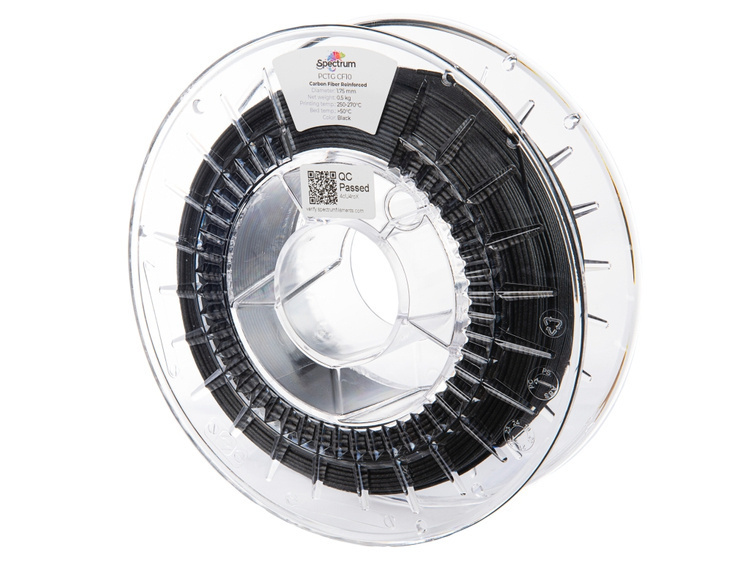

Spectrum PCTG CF10 filament
An outstanding specialist enriched with carbon fibres
PCTG is a copolyester with growing popularity among users of 3D printing technology. In terms of properties, it is often combined with PETG, well known to every printer. It is worth noting, however, that PCTG is characterized by a much higher impact strength. The high flexibility of PCTG combined with high bondability of layers, high viscosity and negligible shrinkage make it an ideal polymer for composing composite materials.
As the first of the PCTG-based composites, a carbon fiber version was developed - PCTG CF10. The carbon fibers used give the filament an extremely high rigidity, while limiting the brittle cracking characteristic of other PETG-based carbon composites. The PCTG CF10 filament allows you to print elements with increased hardness and tensile strength than classic PCTG. The use of carbon fibers increases the thermal resistance of the filament, additionally reduces shrinkage and gives the characteristic "carbon" matte appearance to printed models.
PCTG CF10 key features:
- HDT temperature resistance - 78°C - high stiffness and tensile strength - good impact resistance - chemical resistance - high dimensional accuracy of printed elements - carbon, matte print surface - possibility of waste processing
Application of PCTG CF10:
- visual and functional prototyping - fit tests - conceptual models - production of housings and covers - production of parts exposed to abrasive wear - production tools and tooling
Material: PCTG CF10
Diameter: 1.75 mm.
Dimensional tolerance: +/- 0.03 mm.
Net weight: 0,5kg
Spool size: avg. outside 20 cm, dia. Internal. 5.2 cm, width 5,5 cm.
Printing Temperature: 250°C- 270°C
Table temperature: >50°C
